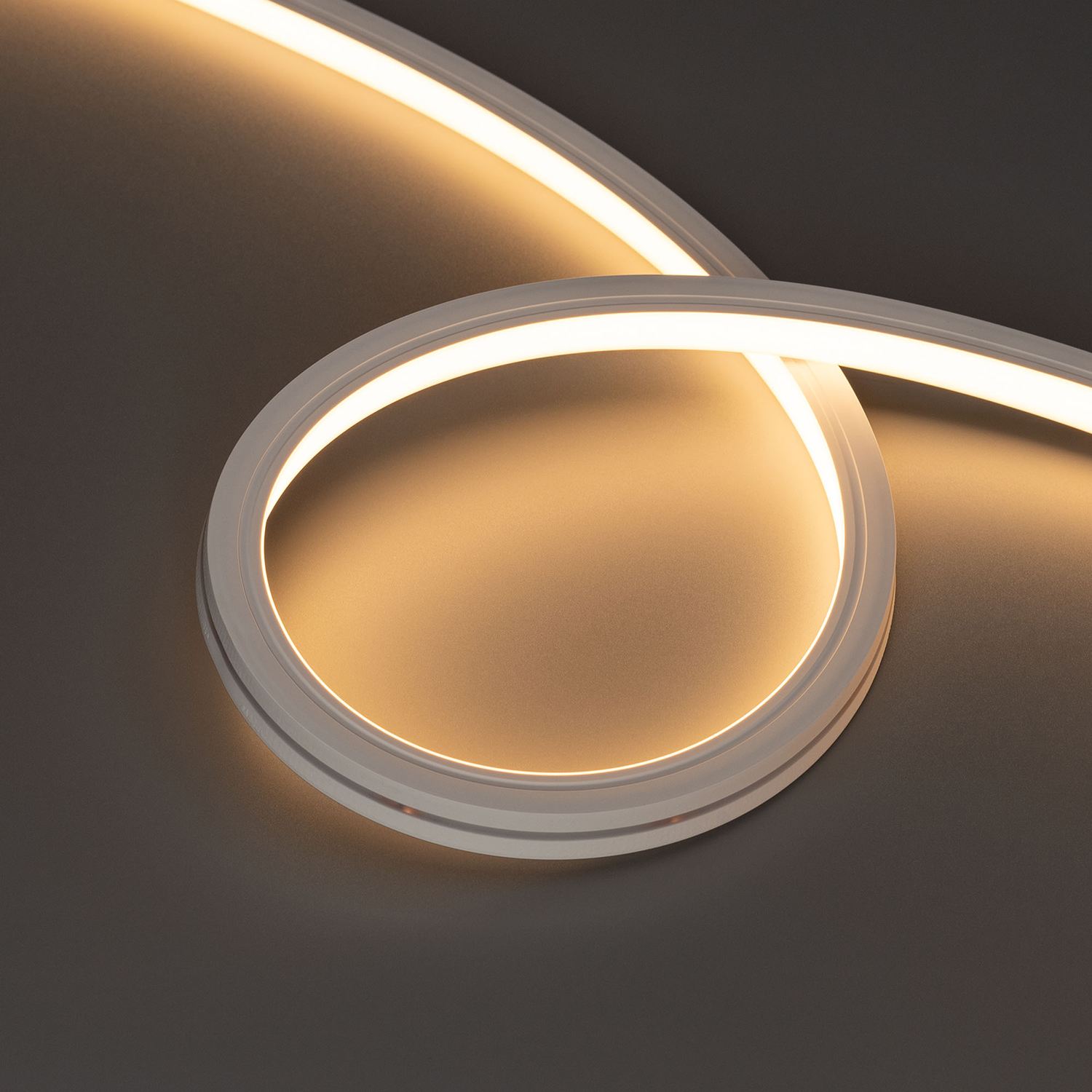

12x12 Top View

Feature

Material: Food grade silicone, Applications: Indoor/outdoor, Colors: Mono color, tunable white, RGB/RGBW and DMX512 pixel RGB/RGBW.

Mono White Series

Model
Color/CCT
Input Volt.
Power/m
LEDs/m
CRI
Cutting
Lumen/m
Max Length (Roll)
DBN-1212T2700K24V10W12080+，90+50mm/1.96in600lm5m/16.4ft
DBN-1212T3000K24V10W12080+，90+50mm/1.96in650lm5m/16.4ft
DBN-1212T4000K24V10W12080+，90+50mm/1.96in650lm5m/16.4ft
DBN-1212T6500K24V10W12080+，90+50mm/1.96in650lm5m/16.4ft


Tunable White Series

Model
Color/CCT
Input Volt.
Power/m
LEDs/m
CRI
Cutting
Lumen/m
Max Length (Roll)
DBN-1212T2700K-6500K24V10W12080+，90+50mm/1.96in600lm5m/16.4ft


DMX512 Pixel White Series

Model
Color/CCT
Input Volt.
Pixel
Power/m
LEDs/m
CRI
Cutting
Lumen/m
Max Length (Roll)
DBN-1212T2700K24V812W12080+，90+125mm/4.92in360lm5m/16.4ft
DBN-1212T3000K24V812W12080+，90+125mm/4.92in400lm5m/16.4ft
DBN-1212T4000K24V812W12080+，90+125mm/4.92in400lm5m/16.4ft
DBN-1212T6500K24V812W12080+，90+125mm/4.92in400lm5m/16.4ft


DMX512 Pixel RGB/RGBW Series

Model
Color/CCT
Input Volt.
Pixel
Power/m
LEDs/m
CRI
Cutting
Lumen/m
Max Length (Roll)
DBN-1212TRGB24V812W12080+，90+125mm/4.92in/5m/16.4ft

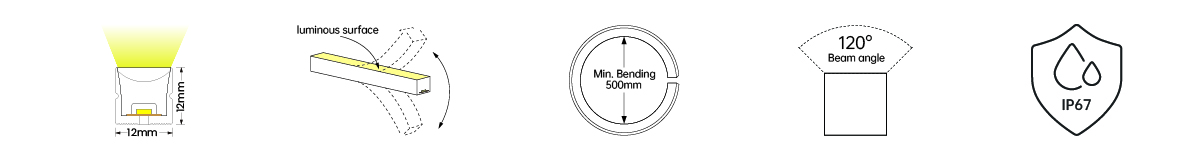

Specification

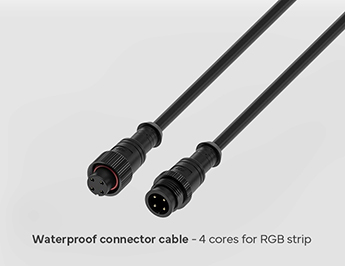

Wires & Connectors

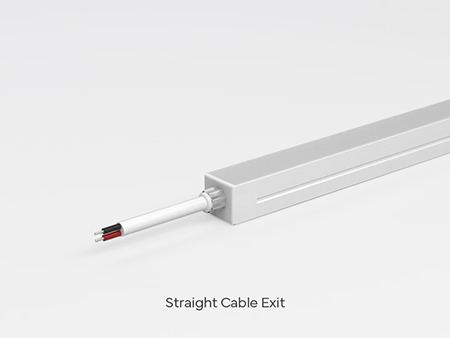

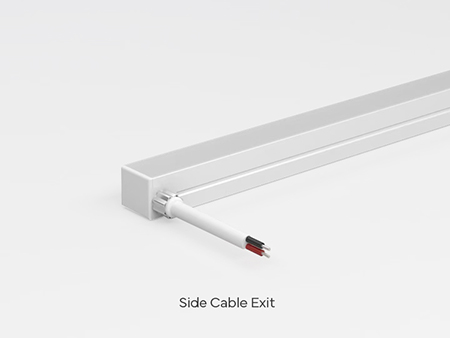

Cable Entry

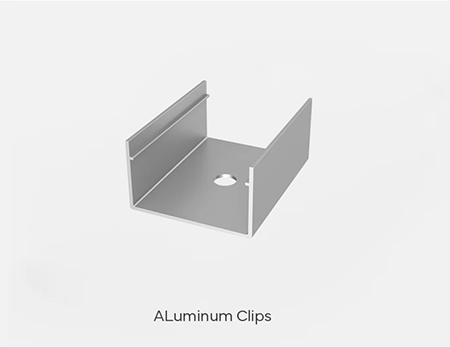

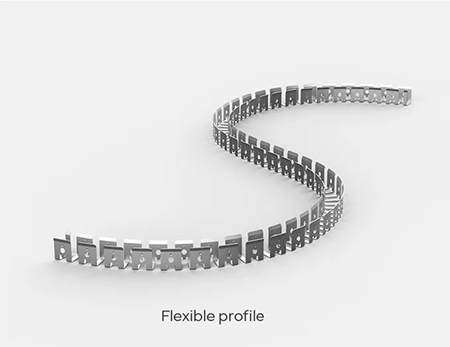

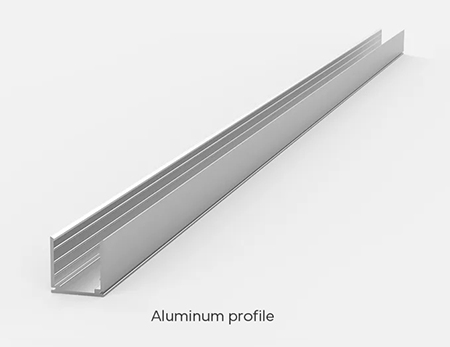

Mounting Profile

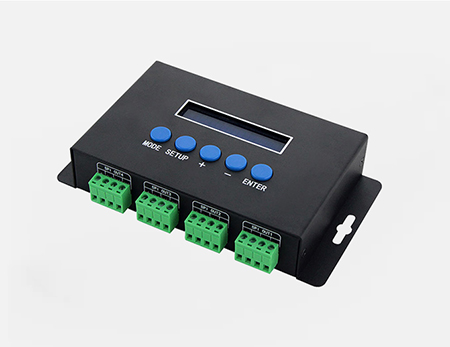

Controller
