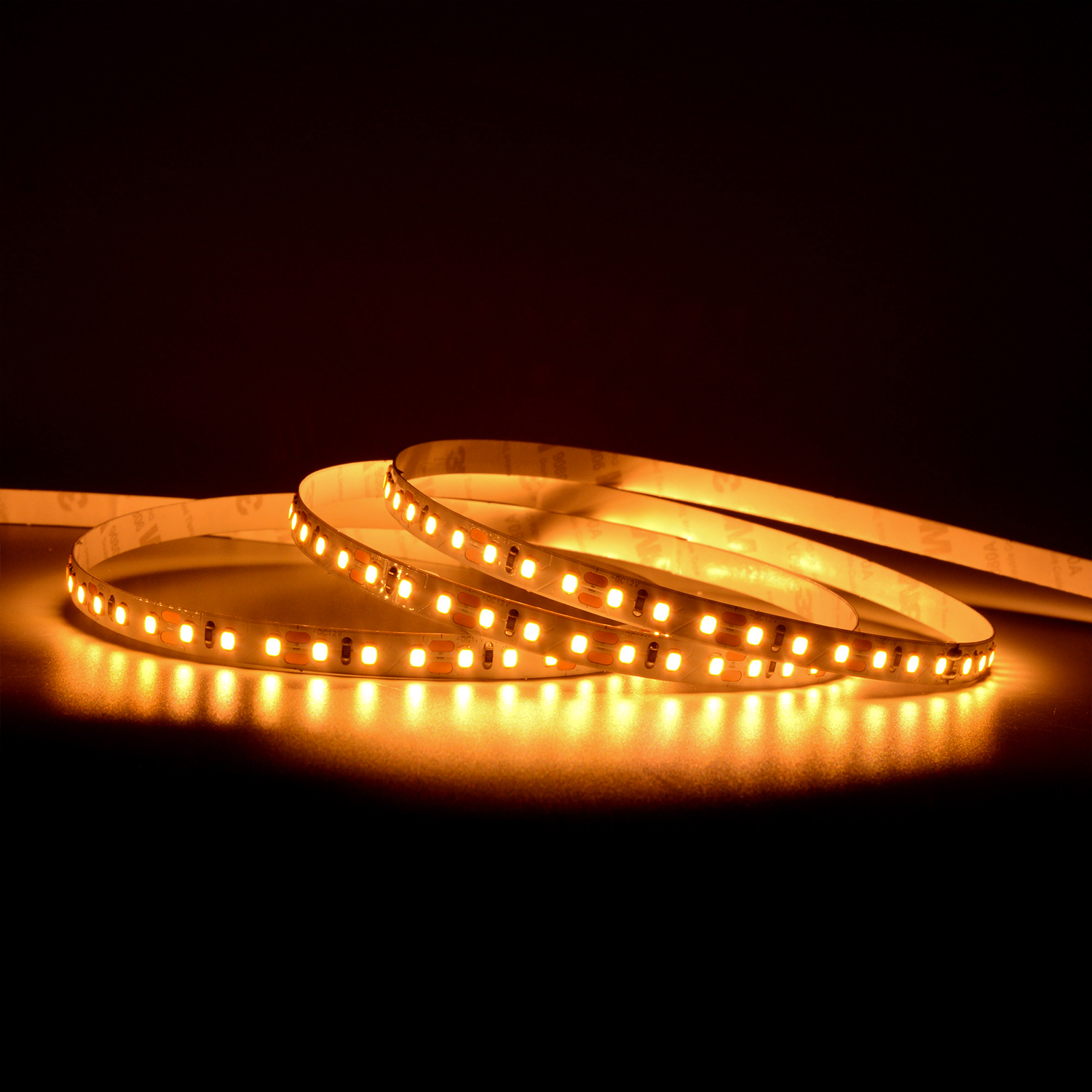

12V/24V-2835-120D-8mm

Feature

2835 SMD led, 5Meter/Roll, .Strong flexibility can be easily bent and cut, Ra90+ lux series led strip light, Full color tempareture available.

Parameters

Model	Color/CCT	Input Volt.	Power/m	chips/m	CRI	Cutting	Efficiency	Lumen/m	Max Length (Roll)
DBF-2835-120D	2700K	12/24V	18W	120	90+	25mm/0.98in@12V 50mm/1.97in@24V	90lm/W	1620lm	5m/16.4ft
DBF-2835-120D	3000K	12/24V	18W	120	90+	25mm/0.98in@12V 50mm/1.97in@24V	93lm/W	1670lm	5m/16.4ft
DBF-2835-120D	4000K	12/24V	18W	120	90+	25mm/0.98in@12V 50mm/1.97in@24V	95lm/W	1710lm	5m/16.4ft
DBF-2835-120D	6500K	12/24V	18W	120	90+	25mm/0.98in@12V 50mm/1.97in@24V	95lm/W	1710lm	5m/16.4ft
