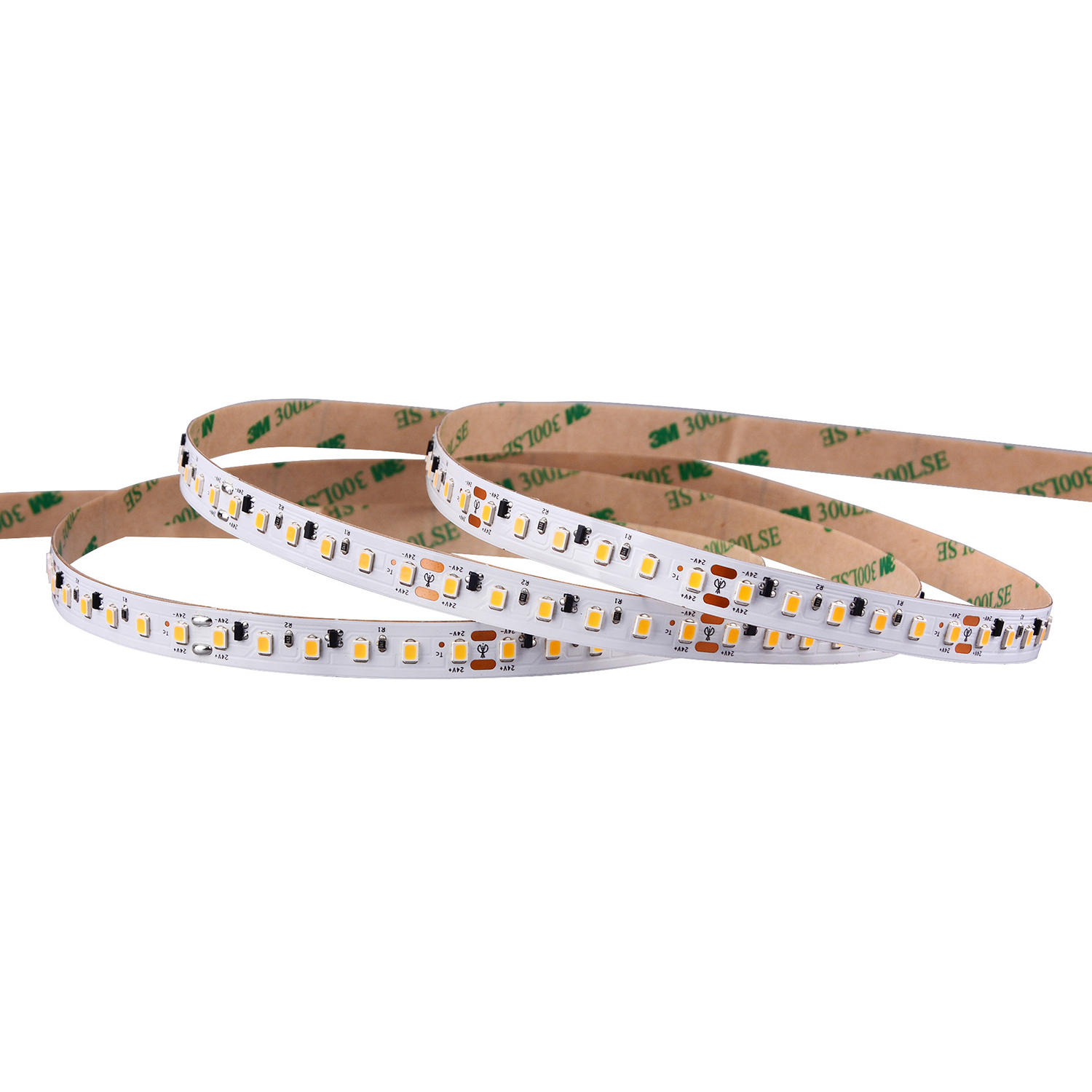

24V-2835-120D-10mm

Feature

2835 SMD led, 20 Meter/Roll Long Cascade, Strong flexibility can be easily bent and cut, Ra90+ lux series led strip light, Full color tempareture available.

Parameters

Model
Color/CCT
Input Volt.
Power/m
chips/m
CRI

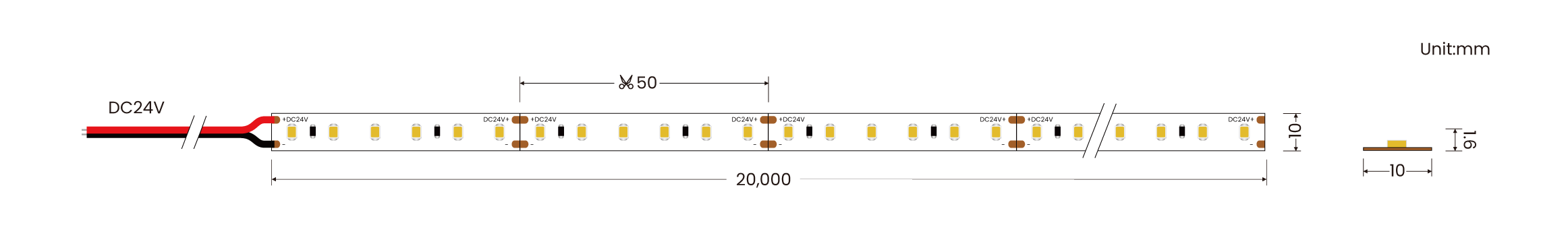

Cutting
Efficiency
Lumen/m
Max Length (Roll)
DBF-2835-120D-20M2700K24V10W12090+50mm/1.97in80lm/W800lm20m/65.6ft
DBF-2835-120D-20M3000K24V10W12090+50mm/1.97in85lm/W850lm20m/65.6ft
DBF-2835-120D-20M4000K24V10W12090+50mm/1.97in90lm/W900lm20m/65.6ft
DBF-2835-120D-20M6500K24V10W12090+50mm/1.97in90lm/W900lm20m/65.6ft

Wires & Connectors

Cable Entry

Mounting Profile

Controller
